the shockokee shock indicator Mounting Instructions
Time：2015-12-09 15:20 Author：dede58.com Click:次
he mounting location of a Shockokee shockLabel is important to ensure that the indicator properly detects mishandling and impact.
RULES OF THUMB:
-
Always place labels on right edge of shipment.
-
Always place label on the longest side of the package.
-
The heavier the shipment, the lower you should mount the label.
RECOMMENDED PRODUCT PLACEMENT
L-30 GREEN – 100 G’s at 50 M.S. and L-35 ORANGE – 75 G’s at 50 M.S. (M.S. = milliseconds)
PLACEMENT OF LABELS:
Placement is in upper right corner of box.
|
L-47 RED – 50 G’s at 50 M.S. (M.S. = milliseconds)
PLACEMENT OF LABELS:
-
On lighter boxes, place the ShockWatch label from 24 in (60.96 cm) to the upper right corner of the box.
-
On heavier boxes or palletized shipments, place label on right edge, 24 in (60.96 cm) from the bottom of the package.
NOTE:
Lighter box 50-100 lbs (22.68 kg – 45.36 kg);
Heavier box 100-500 lbs (45.36 kg – 226.8 kg).
L-55 PURPLE – 37 G’s at 50 M.S. (M.S. = milliseconds)
PLACEMENT OF LABELS:
-
On lighter boxes, place the ShockWatch label from 24 in (60.96 cm) to the upper right corner of the box. See Figure A.
-
On heavier boxes or palletized shipments, place label on right edge, 12-24 in (30.48 cm – 60.98 cm) from the bottom of the package. See Figure A.
-

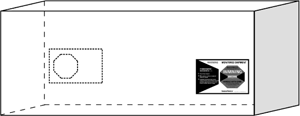

On heavier boxes (when length is twice the width) or palletized shipments, use 2 labels. Place labels on opposite sides of carton diagonally from each other. See Figure B.
Figure A.Figure B.
L-65 YELLOW – 25 G’s at 50 M.S. (M.S. = milliseconds)
PLACEMENT OF LABELS:
-
Place ShockWatch label 12 in-14 in (30.48 cm – 35.56 cm) from bottom of box. Place labels on opposite sides of carton diagonally from each other to cover monitoring of total shipment. See Figure C.
-
On heavier boxes (when length is twice the width) or palletized shipments, use 2 labels. Place labels on opposite sides of carton diagonally from each other. See Figure D.
Figure B. Figure A
